AI Explains Exergy Destruction

AI just wants to help!

I have an essay about universal CO2 gas separation under development, and I wrote a section discussing exergy destruction and Pumped Hydropower Storage. I wanted a simple review and suggestions for improvement. The AI, being the overachiever that it is, created the following explanation with minimal prompting.

It is a helpful, very detailed explanation, but it is too much for the essay, so I am providing it as supplemental information.

Understanding Exergy in Pumped Hydropower Storage

Introduction to Pumped Hydropower Storage

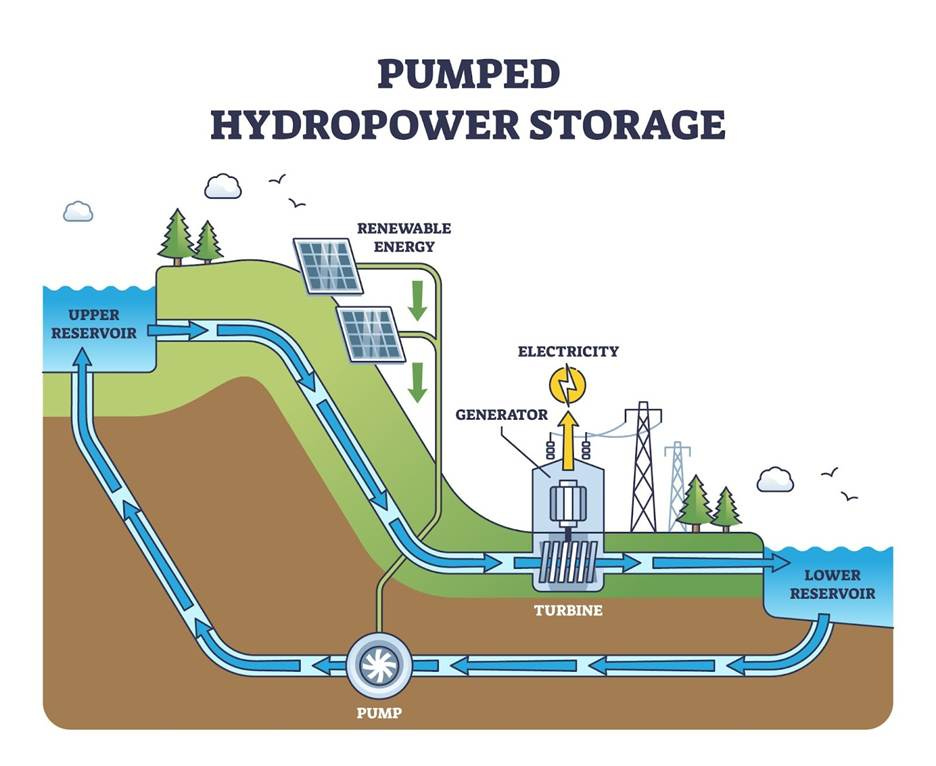

Pumped hydropower storage is a time-tested solution for balancing electricity supply and demand, often used to store renewable energy from sources like solar and wind. Picture two reservoirs at different elevations: an upper reservoir perched high on a hill and a lower reservoir at its base. During periods of excess electricity, water is pumped from the lower to the upper reservoir, storing energy. When demand spikes, water flows back down through turbines, generating electricity. This system is a cornerstone of grid stability, but its efficiency hinges on a thermodynamic concept called exergy—the maximum useful work a system can perform. Let’s explore exergy and its inevitable loss, known as exergy destruction, using this water-based analogy.

Exergy: The Potential for Useful Work

Exergy measures the maximum work a system can theoretically deliver as it moves toward equilibrium with its surroundings. In pumped hydropower, exergy is embodied in the potential energy of water in the upper reservoir. Imagine 1,000 cubic meters of water sitting 100 meters above the lower reservoir. This height gives the water gravitational potential energy, calculated as mass × gravity × height. For our water, that’s 1,000,000 kg × 9.81 m/s² × 100 m, or roughly 981 MJ (megajoules) of potential energy. This energy represents the exergy—the maximum work the water can do as it flows down through turbines to generate electricity.

But exergy isn’t just energy; it’s the portion of energy that can be converted into useful work. If the upper reservoir were at the same level as the lower one, the water’s potential energy (and thus its exergy) would be zero—it couldn’t do any work by flowing. The greater the height difference, the greater the exergy, because the water has more potential to move and drive a turbine. In thermodynamic terms, exergy depends on the system’s state relative to its environment: the upper reservoir’s elevation creates a “potential gradient” that can be harnessed, much like a battery’s charge or a hot object’s heat can produce work before reaching equilibrium.

Exergy Destruction: Losses Through the Leak

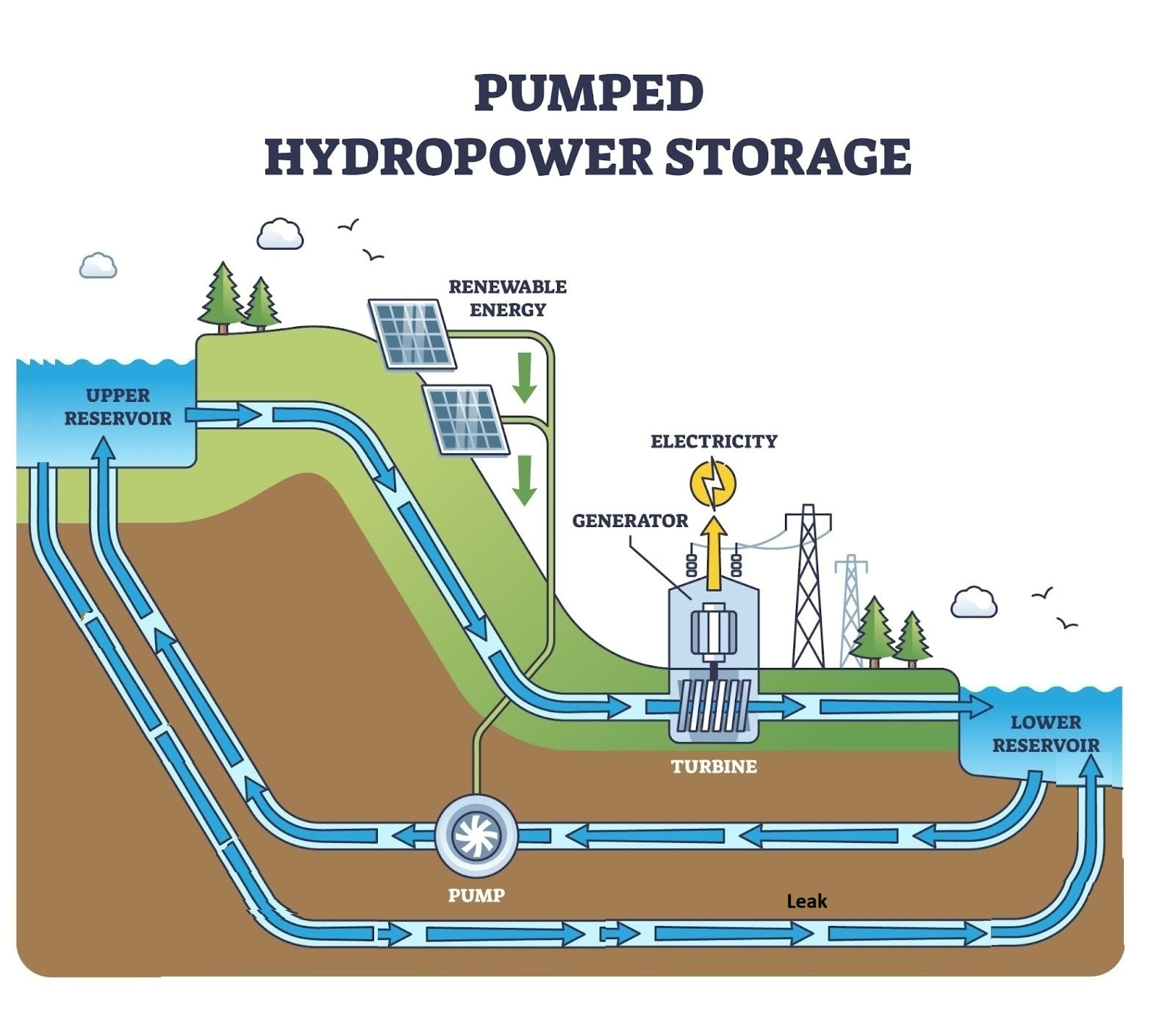

Not all of the water’s exergy can be converted into electricity, because some of it is inevitably lost through a process called exergy destruction. In our system, imagine a pipe connecting the upper reservoir to the lower one, through which water leaks uncontrollably. This leak represents an irreversible process where potential energy is wasted. As water flows through the pipe, it bypasses the turbine, falling 100 meters without generating electricity. The potential energy it had—981 MJ for our 1,000 cubic meters—is dissipated as heat due to friction in the pipe and turbulence as the water splashes into the lower reservoir. This lost potential is exergy destruction: the portion of exergy that can no longer be used for work.

Exergy destruction occurs because of irreversibilities in the system. In thermodynamics, irreversibility is tied to entropy generation—disorder that increases whenever energy is transferred or transformed inefficiently. The leaking water generates entropy as its organized potential energy turns into random heat, lost to the environment. Even in the absence of a leak, exergy destruction happens in pumped hydropower through friction in the turbines, heat losses in the generators, and inefficiencies in the pumping process. For example, if the turbines are only 90% efficient, 10% of the water’s exergy is destroyed as heat, reducing the electricity output. In our case, if 100 cubic meters leak through the pipe, that’s 98.1 MJ of exergy destroyed—work that could have powered homes but instead warms the air and water uselessly.

Analyzing Exergy Loss from the Leak

Let’s examine a worst-case scenario: the leak is so severe that the system operates at only 10% efficiency. This means that of the 981 MJ of exergy initially stored in the 1,000 cubic meters of water, only 10%—or 98.1 MJ—is converted into electricity via the turbines. The remaining 90%, or 882.9 MJ, is lost as exergy destruction, primarily through the leak. To understand this in terms of water volume, if each cubic meter has 0.981 MJ of potential energy (981 MJ ÷ 1,000 m³), then 882.9 MJ corresponds to approximately 900 cubic meters leaking through the pipe (882.9 MJ ÷ 0.981 MJ/m³). Only 100 cubic meters flow through the turbines to generate the 98.1 MJ of electricity.

This massive exergy loss highlights the devastating impact of the leak. The 882.9 MJ of destroyed exergy becomes heat, dissipated through friction in the pipe and turbulence in the lower reservoir, contributing to entropy generation. In practical terms, this means 90% of the system’s potential to support the grid is wasted. For renewable energy integration, such inefficiency is catastrophic: the lost 882.9 MJ could have powered thousands of homes, reducing reliance on fossil fuels. Instead, we’d need to burn more coal or gas to make up the shortfall, emitting additional CO2 and worsening ocean acidification. This scenario underscores the critical need to minimize exergy destruction through better design, such as sealing leaks and improving turbine efficiency.

Implications for Efficiency and Climate Goals

Exergy destruction directly reduces the system’s efficiency, as seen in the extreme case above. In a more typical scenario, without such a drastic leak, we might extract 800 MJ of work from the 981 MJ of exergy, achieving 81% efficiency. But even these smaller losses matter because pumped hydropower is critical for storing renewable energy, helping us reduce CO2 emissions. Every megajoule of exergy destroyed means more fossil fuel energy needed to fill the gap, accelerating climate change and ocean acidification. By minimizing leaks—both literal and metaphorical, like turbine inefficiencies—we can preserve more exergy, making the system more sustainable. Understanding and mitigating exergy destruction isn’t just about physics; it’s about ensuring renewable energy systems can scale to meet urgent climate goals.

Conclusion

Pumped hydropower storage illustrates exergy through the potential energy of water in an upper reservoir, poised to do work as it flows downward. Exergy destruction, visualized as water leaking through a pipe, shows how irreversibilities like friction and entropy generation rob us of useful work, converting potential into wasted heat—a loss that becomes stark at 10% efficiency, where 90% of the exergy is destroyed. These concepts are crucial for designing efficient energy systems, especially as we race to decarbonize the grid. By grasping exergy, we can better appreciate the value of energy quality—not just quantity—and work to minimize losses, ensuring technologies like pumped hydropower can help us combat climate change effectively.
